Universal Power Supply UPS S2

The Amperis Universal Power Supply S2 (UPS S2) is designed to meet a utility company's substation needs for an independent AC/DC power source. The UPS S2's AC and DC voltage sources can each supply up to 10 amperes. The variable DC power supply (10 – 300 Vdc) is ideal for use as a substitute primary power source when substation batteries are not available. The UPS S2 is best suited for operating circuit-breakers, powering substation relays, or for un-regulated charging of substation batteries. The AC power supply is a variable isolated power source (10 – 240 Vac) that can be used to power other equipment in the substation. Ordering Information – Universal Power Supply S2 UPS–S2 Part No: UPS–S2 UPS–S2 Shipping Case Part No: UPS–S2 Case UPS–S2 Test Leads Part No: UPS–S2 Test Leads

UPS-S2 FEATURES

• Isolated variable 10 – 300 Vdc source
• Isolated variable 10 – 240 Vac source
• 10 ampere continuous current

The Universal Power Supply S2 delivers several important features:

• All output power sources are isolated from the primary power input by an isolation transformer.
• Voltage outputs are continuously variable (auto-transformer) via a front panel control knob.
• The primary power input is selectable (120Vac or 240Vac).
• All voltage outputs are capable of supplying a continuous 10 ampere load.

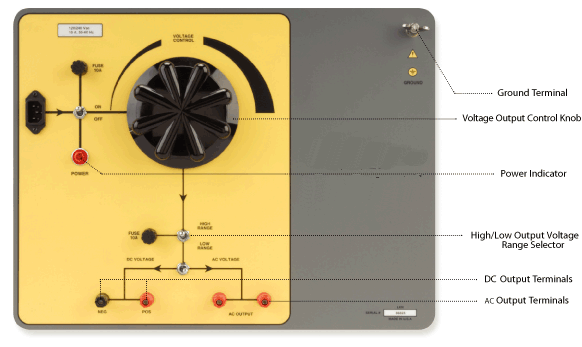

For ease of operation, the power output path is clearly outlined on the control panel. This provides an intuitive visual guide for making the appropriate selections for a particular operating configuration. The Universal Power Supply S2 is housed in a heavy-duty, impact-resistant plastic enclosure and is furnished with a power cord, grounding cable, and a pair of test leads with alligator clips.
