Accu-Ohm 200

The Accu-Ohm 200 S2 is especially designed to accurately measure low resistances from 1 micro-ohm to 300 milli-ohms. Using a microprocessor, the Accu-Ohm 200 S2 can accurately calculate and display a resistance reading at any current from 10A to 200A. The Accu-Ohm 200 S2 is designed for testing EHV circuit-breaker contact resistance, bushing contact joints, or for any low-resistance measuring application. The Accu-Ohm 200 S2 applies an un-filtered direct current from 10A to 200A to the resistance load being tested. Any test current setting can be selected by using the current control dial on the front panel. The resistance reading is displayed directly in micro-ohms or milli-ohms. No calculations are required to compensate for lead resistances when using the Accu-Ohm 200 S2.

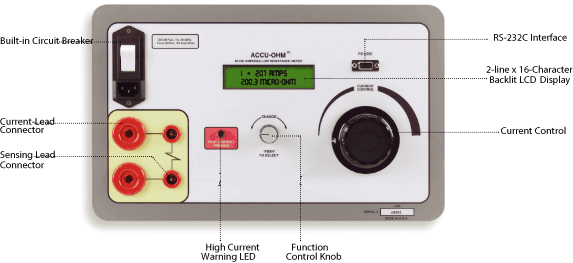

The Accu-Ohm 200 S2 features a back-lit LCD screen (1-inch high, 16 characters by 2 lines) that is viewable in both bright sunlight and lowlight levels. The resistance reading is displayed on the screen until the next test is initiated. The last three resistance measurements are stored internally and can be displayed on the LCD screen. An RS-232C interface port is also provided for diagnostic testing.

The Accu-Ohm 200 S2 is furnished with two 30-foot test cables. Fifteenfoot test cables are also available as an option. Both cables are terminated with quick disconnect clips. Heavy-duty, welding-type, C-clamps are available as an optional accessory. These can be used to connect the test cable leads to a wide variety of bushing sizes, bus-bars and other conductors requiring low-resistance test contacts.

The Accu-Ohm 200 S2's power supply is thermally protected, and the contact-sensing inputs are protected against static-discharge damage.

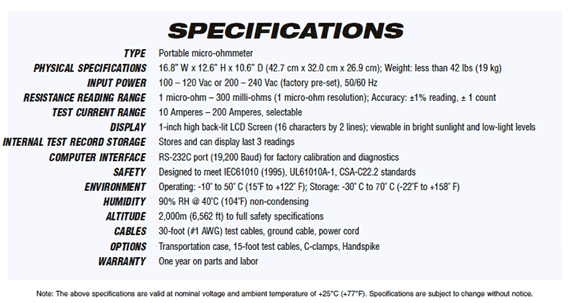

measure low resistances Accu-Ohm 200 measure low resistances specs
